LR1 MS76
13B726JD603
LR1 MS76

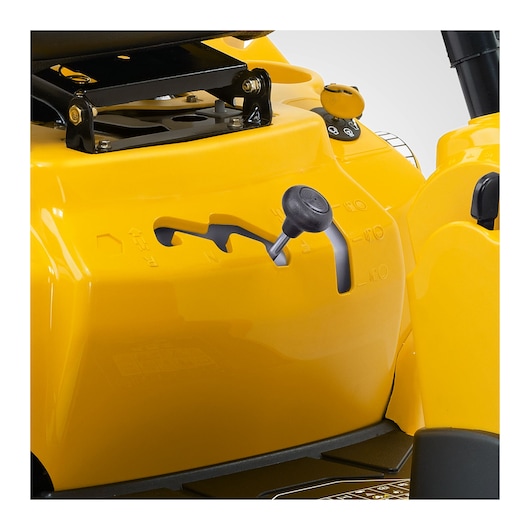

- The transmatic transmission allows shift-on-the-go speed control. Simply choose your driving direction, set the desired basic speed and start mowing. On the Cub Cadet MINI-RIDER LR1 MR76, select between 6 forward and 6 reverse speeds.
Additional Features
Specifications
|
Vibrations Body
|
1,3 m/s2
|
|
Vibrations Hand-Arm
|
2,6 m/s2
|
|
Feature - Bag Full Indicator
|
–
|
|
Feature - Bag Lever
|
–
|
|
Feature - Battery
|
12V, 135CCA, AGM
|
|
Feature - Battery Charger
|
optional (196-967-678)
|
|
Bearings
|
Sleeve bearings
|
|

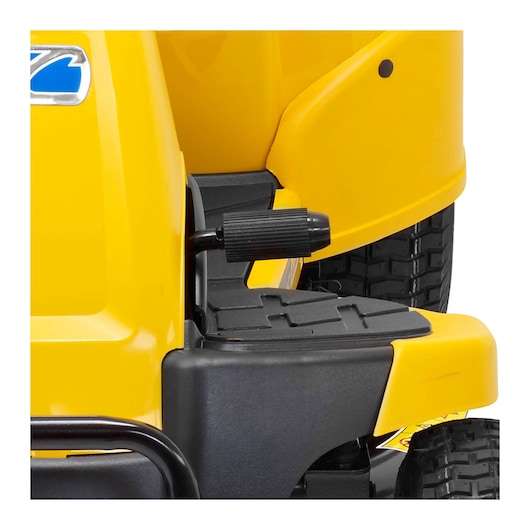

Control
|
Foot pedal control with lever for manual pre-selection
|
|
Cutting height
|
38–95 mm
|
|
Cutting height adjustment
|
5 positions
|
|
Cutting options
|
2-in-1-option
|
|
Cutting width
|
76 cm
|
|
Engine cylinders
|
Single
|
|
Deck engagement
|
Manual lever control
|
|
Engine displacement
|
382 ccm
|
|
Engine nominal power
|
7,9 kW
|
|
Engine RPM
|
2.900
|
|
Engine type
|
Cub Cadet OHV
|
|
Frame
|
Easy entry frame
|
|
Front axle
|
Steel
|
|
Feature - Front Bumper
|
Standard
|
|
Grass catcher accessories
|
optional (19A30014OEM)
|
|
Grass catcher capacity
|
Optional 115
|
|
Feature - Grass Deflector
|
Standard
|
|
Feature - Hardtop
|
–
|
|
Feature - Headlights
|
–
|
|
Dimension - Height
|
112 cm
|
|
Vibrations Body - K-Factor
|
0,65 m/s2
|
|
Vibrations Hand-Arm - K-Factor
|
1,3 m/s2
|
|
Dimension - Length
|
157 cm
|
|
Sound Emission LPA
|
86,6 dB(A)
|
|
Lubrication
|
Fully pressurized automotive-style oil pump with spin-on oil filter
|
|
Sound Emission LWA
|
98,8 dB(A)
|
|
Sound Emission LWAG
|
100 dB(A)
|
|
Cutting: mowing area (recommended)
|
3.000 m2
|
|
Mowing technology
|
Side discharge
|
|
Feature - Mow in Reverse
|
Standard
|
|
Feature - Mulching Kit
|
optional (196-334-600)
|
|
Number of blades
|
1
|
|
Number of speeds
|
6 (f/r), shift-on-the-go
|
|
Seat adjustment
|
Tool-less
|
|
Seat type
|
Comfort Seat
|
|
Steering wheel
|
Standard
|
|
Tank volume
|
4,9 L
|
|
Transmission
|
Transmatic
|
|
Turning radius
|
46 cm
|
|
Feature - Washing Nozzle
|
Standard
|
|
Weight
|
126 kg
|
|
Wheel size front
|
13 x 5 in.
|
|
Wheel size rear
|
16 x 6,5 in.
|
|
Dimension - Width
|
85 cm
|
