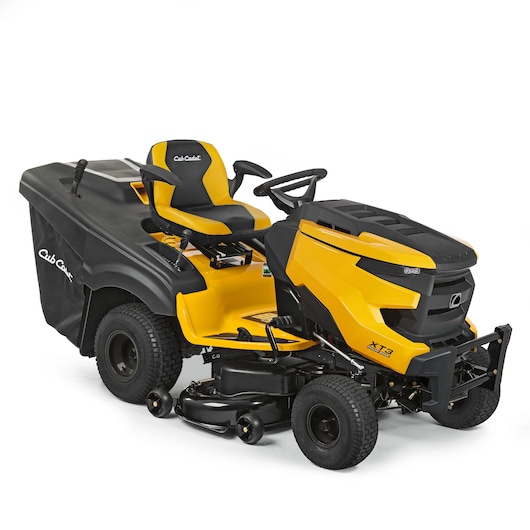

XT3 QR106
13AFA5TR603
XT3 QR106
- Optimize your mowing results in minimum time.
- Unbeatable efficiency even in confined spaces thanks to _x000D_ innovative TIGHT TURN Technology.
- Ultra-rigid frame for top durability.
Additional Features
- Two-cylinder engine for demanding terrain with particularly quiet running and low fuel consumption.
Specifications
|
Vibrations Body
|
0,2 m/s2
|
|
Vibrations Hand-Arm
|
2,0 m/s2
|
|
Feature - Bag Full Indicator
|
Standard, with automatic blade switch-off
|
|
Feature - Bag Lever
|
Rounded ergo telescopic handle
|
|
Feature - Battery Charger
|
–
|
|
Bearings
|
Sleeve bearings
|
|
Control
|
Foot pedal control
|
|
Feature - Cruise Control
|
Standard
|
|
Feature - Cup Holder
|
Standard
|
|
Cutting deck
|
stamped
|
|
Cutting height
|
25–100 mm
|
|
Cutting height adjustment
|
12 positions
|
|
Cutting width
|
106 cm
|
|
Engine cylinders
|
V-TWIN dual cylinder
|
|
Deck engagement
|
Electric PTO
|
|
Deck wheels
|
4 balls deck wheels
|
|
Engine displacement
|
726 ccm
|
|
Engine nominal power
|
11,8
|
|
Engine RPM
|
2.200 U/min
|
|
Engine type
|
Kawasaki
|
|
Frame
|
robotically-welded
|
|
Front axle
|
Heavy-duty cast-iron
|
|
Feature - Front Bumper
|
Bull Bar
|
|
Grass catcher accessories
|
–
|
|
Grass catcher capacity
|
360 L, with Anti-dust-system
|
|
Feature - Grass Deflector
|
optional (196-552A000)
|
|
Feature - Hardtop
|
Plastic
|
|
Feature - Headlights
|
LED
|
|
Dimension - Height
|
118 cm
|
|
Vibrations Body - K-Factor
|
0,5 m/s2
|
|
Vibrations Hand-Arm - K-Factor
|
1,0 m/s2
|
|
Dimension - Length
|
267 cm
|
|
Sound Emission LPA
|
83,7 dB(A)
|
|
Sound Emission LWA
|
98,9 dB(A)
|
|
Sound Emission LWAG
|
100 dB(A)
|
|
Cutting: mowing area (recommended)
|
8.000 m2
|
|
Feature - Mow in Reverse
|
Standard
|
|
Feature - Mulching Blade
|
optional (196-560-000)
|
|
Feature - Mulching Kit
|
optional (196-550-000)
|
|
Number of blades
|
2
|
|
Number of speeds
|
stepless (f/r)
|
|
Discharge - Rear
|
Standard
|
|
Seat adjustment
|
Lever, angled, 10 slide
|
|
Seat type
|
Cut & Sew, high back rest, with arm rests
|
|
Discharge - Side
|
–
|
|
Steering wheel
|
Ergonomic with gentle touch
|
|
Tank volume
|
11,4 L
|
|
Feature - Tool Box
|
Standard
|
|
Transmission
|
Hydrostatic, with differential lock
|
|
Turning radius
|
TIGHT TURN xTREME 17 cm
|
|
Feature - Washing Nozzle
|
Standard
|
|
Weight
|
268 kg
|
|
Wheel size front
|
15'' x 6''
|
|
Wheel size rear
|
18'' x 8,5''
|
|
Dimension - Width
|
110 cm
|
